Marine Engines / SE 6-Cylinder / SE286E40
SE286E40

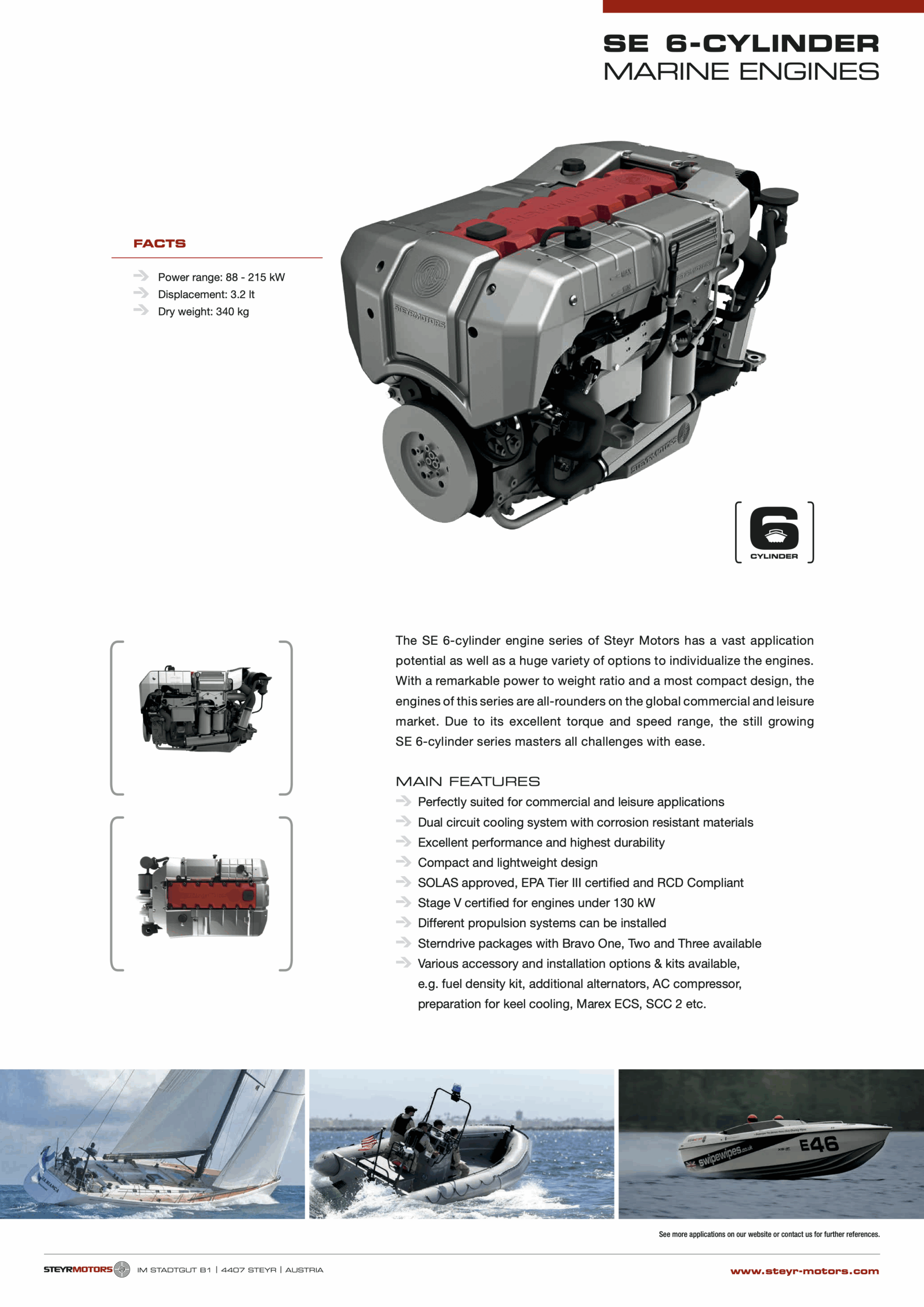

The SE 6-cylinder engine series of STEYR MOTORS has a vast application potential as well as a huge variety of options to individualize the engines. With a remarkable power to weight ratio and a most compact design, the engines of this series are all-rounders on the global commercial and leisure market. Due to its excellent torque and speed range, the still growing SE 6-cylinder series masters all challenges with ease.
- Power range: 88 – 215 kW
- Displacement: 3.2 L
- Dry weight: 340 kg
Main Features
❚ Perfectly suited for commercial and leisure applications
❚ Dual circuit cooling system with corrosion resistant materials
❚ Excellent performance and highest durability
❚ Compact and lightweight design
❚ SOLAS approved, EPA Tier III certified and RCD Compliant
❚ Stage V certified for engines under 130 kW
❚ Different propulsion systems can be installed
❚ Sterndrive packages with Bravo One, Two & Three available
❚ Various accessory and installation options & kits available, e.g. fuel density kit, additional alternators, AC compressor, preparation for keel cooling, Marex ECS, SCC 2 etc.
Engine Details
❚Model SE286E40
❚Rated Power (kW/HP) 205/278.7
❚Rated Speed (RPM) 4000
❚Max Torque (Nm @ RPM) 470 @ 2550
❚Dry Weight 750 lb / 340 kg
❚Rating PL, HO
❚Certificates SOLAS, RCD II, ZSUK 2004/26/EG, EPA Tier III, RMRS
❚Propulsion T, S, J
❚ Length 1058.3 mm / 41.66 in
❚ Width 599.5 mm / 23.66 in
❚ Height 515 mm / 20.28 in
❚ PL – Pleasure (max. 300 hours/year)
❚ HO – High Output (max. 300 hours/year)
❚ T – Transmission
❚ S – Sterndrive
❚ J – Water Jet
Monoblock Design
One piece engine block and cylinder head made from high grade alloy cast iron.
Two Stage Unit Injection
Integrated high pressure unit injector with dual stage fuel injection technology.
Multi Fuel
Specially developed fuel systems provides the option of running on multi fuel.
SOLAS
SOLAS (Safety of Life at Sea) on all models of 4 cylinder and 6 cylinder marine diesel engines.
With a remarkable power to weight ratio and a most compact design, the engines of this series are all-rounders on the global commercial and leisure market.
Steyr Inboard Engines – Made for Maritime Applications
Unlike many other products, Steyr marine engines are designed and manufactured purely for marine applications, ensuring a sole focus on marine requirements and supreme quality.
The underlying Monoblock design has proven time and again its striking characteristics in terms of robustness, weight and size. In its product development, Steyr Motors is emphasizing durability, reliability, operational safety but also the possibility to customize products with various kits and options according to individual requirements and preferences. Another important feature is the compactness and unrivaled power-to-weight ratio of Steyr engines, making them very attractive for commercial and pleasure applications likewise. Topped off with an eyecatching design, Steyr Motors’ products have proven their excellence in prestigious yachts, dashing powerboats, prize-winning race boats as well as various (fast) rescue and SOLAS applications.
