Marine Engines / SE 4-Cylinder / SE144E38

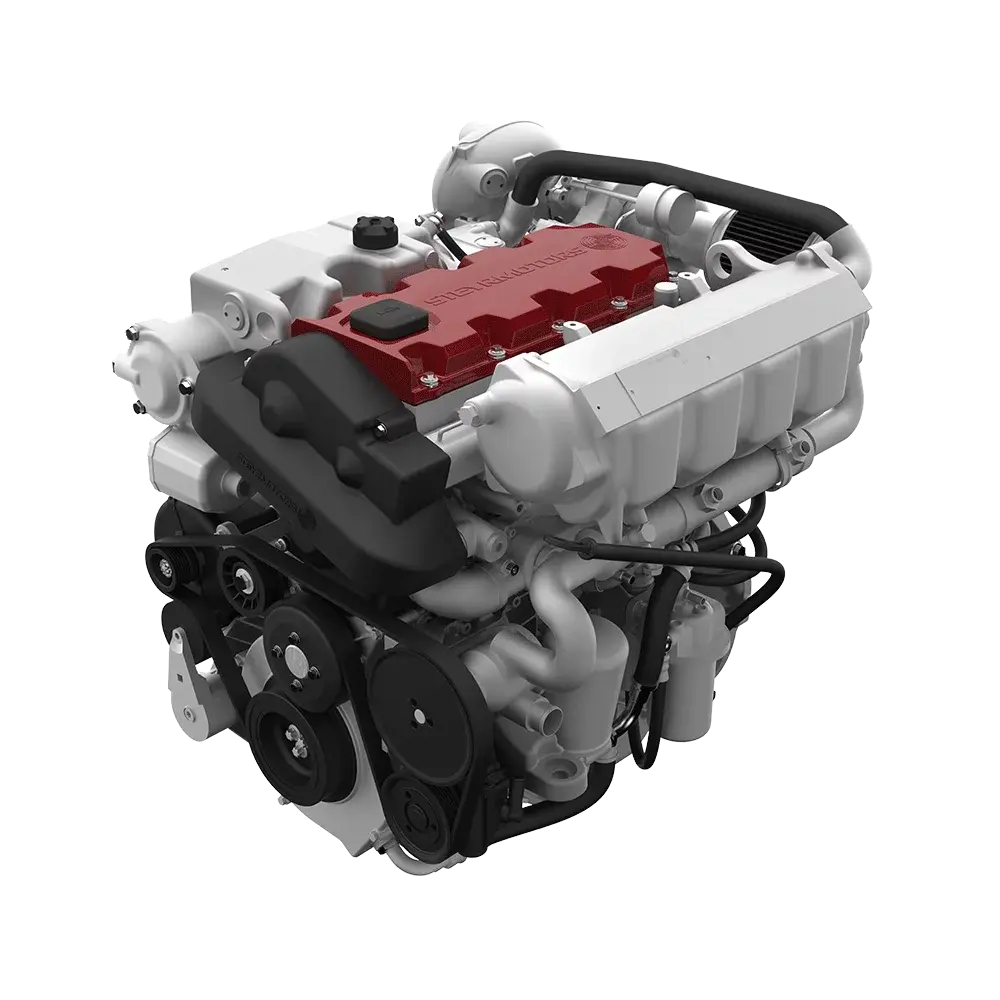

SE144E38

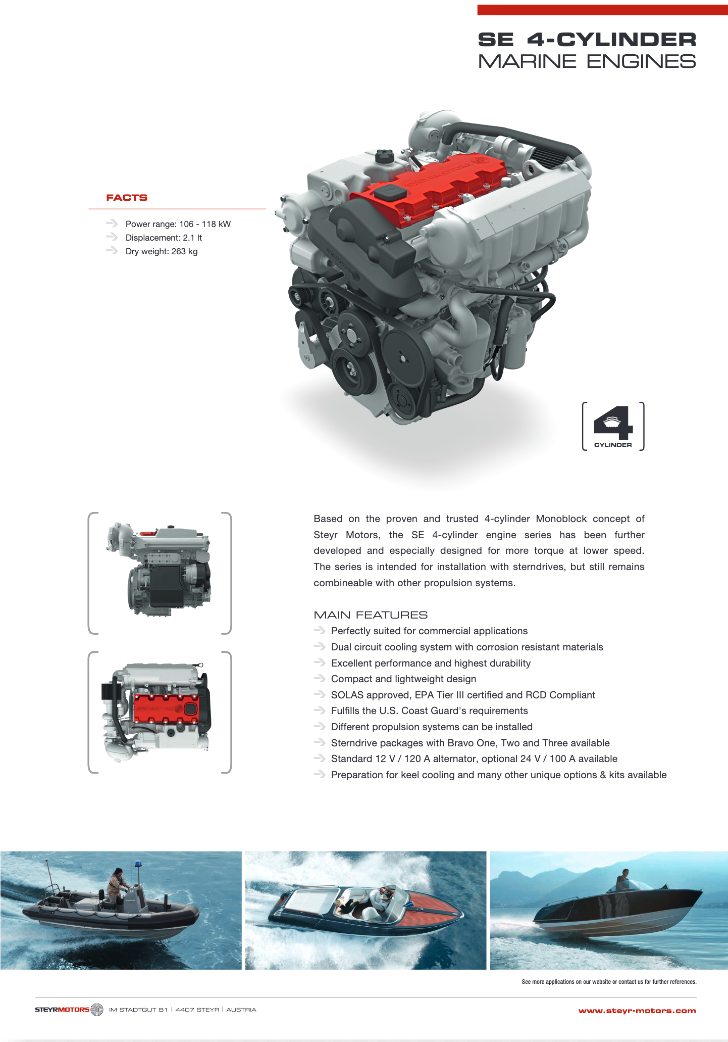

Based on the proven and trusted 4-cylinder Monoblock concept of STEYR MOTORS, the SE 4-cylinder engine series has been further developed and especially designed for more torque at lower speed.
The series is intended for installation with sterndrives, but still remains combinable with other propulsion systems.
- Power range: 106 – 118 kW
- Displacement: 2.1 L
- Dry weight: 580 lb / 263 kg
Main Features
❚ Commercial applications
❚ Dual circuit cooling system with corrosion resistant materials
❚ Excellent performance and highest durability
❚ Compact and lightweight design
❚ EPA Tier Ill certified and CD compliant
❚ Fulfills the U.S. Coast Guard’s requirements
❚ Different propulsion systems packages
❚ Sterndrive packages with Bravo One, Two and Three available and also ZF trans.
❚ Standard 12 V / 120 A alternator, optional 24 V / 100 A available
❚ Preparation for keel cooling and many other unique options & kits available
Engine Details
❚Model SE144E38
❚Rated Power (kW/HP) 106/144
❚Rated Speed (RPM) 3800
❚Max Torque (Nm @ RPM) 320 @ 2300
❚Dry Weight 580 lb / 263 kg
❚Rating PL, HO, INT
❚Certificates SOLAS, RCD II, ZSUK 2004/26/EG, EPA Tier III, RMRS
❚Propulsion T, S, J
❚ Width 553 mm / 22 in
❚ Height 528 mm / 21 in
❚ PL – Pleasure (max. 300 hours/year)
❚ HO – High Output (max. 300 hours/year)
❚ INT – Intermittent Duty (max. 1500 hours/year)
❚ T – Transmission
❚ S – Sterndrive
❚ J – Water Jet
Monoblock Design
One piece engine block and cylinder head made from high grade alloy cast iron.
Two Stage Unit Injection
Integrated high pressure unit injector with dual stage fuel injection technology.
Multi Fuel
Specially developed fuel systems provides the option of running on multi fuel.
SOLAS
SOLAS (Safety of Life at Sea) on all models of 4 cylinder and 6 cylinder marine diesel engines.
With a remarkable power to weight ratio and a most compact design, the engines of this series are all-rounders on the global commercial and leisure market.
Steyr Inboard Engines – Made for Maritime Applications
Unlike many other products, Steyr marine engines are designed and manufactured purely for marine applications, ensuring a sole focus on marine requirements and supreme quality.
The underlying Monoblock design has proven time and again its striking characteristics in terms of robustness, weight and size. In its product development, Steyr Motors is emphasizing durability, reliability, operational safety but also the possibility to customize products with various kits and options according to individual requirements and preferences. Another important feature is the compactness and unrivaled power-to-weight ratio of Steyr engines, making them very attractive for commercial and pleasure applications likewise. Topped off with an eyecatching design, Steyr Motors’ products have proven their excellence in prestigious yachts, dashing powerboats, prize-winning race boats as well as various (fast) rescue and SOLAS applications.
