SE4 Series · 4-cylinder
SE144E38
Steyr Motors Multi-fuel capable
SOLAS
About the engine
About the SE144E38

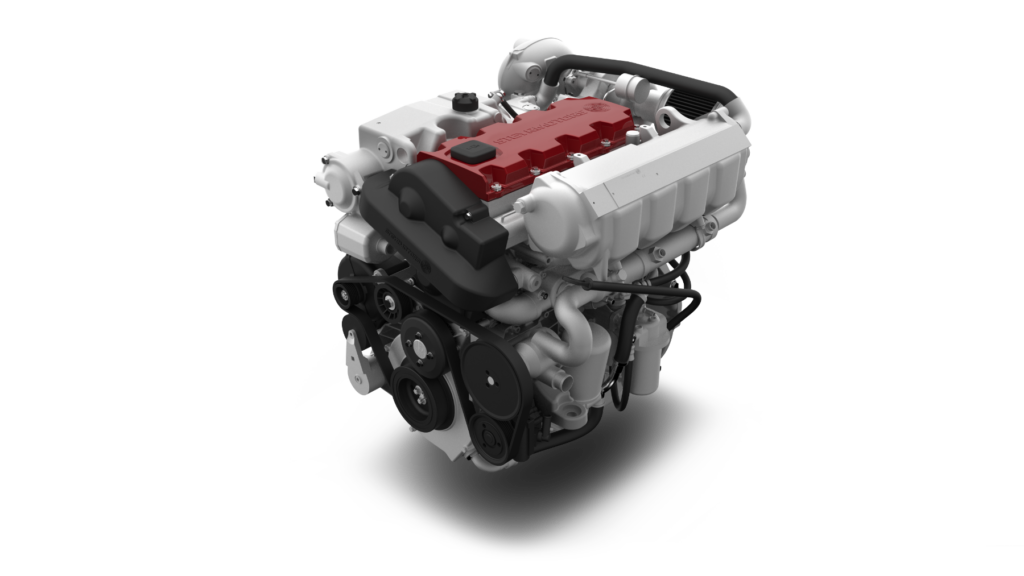

The SE144E38 is a 4-cylinder, 2.1-litre turbocharged direct-injection diesel marine engine from Steyr Motors’ SE4 series. It is rated at 106 kW (144 HP) at 3800 rpm, with maximum torque of 315 Nm at 2050 rpm and a dry weight of 263 kg. The compact monoblock design, dual circuit cooling and multi-fuel capability suit transmission, sterndrive and waterjet propulsion. Duty ratings: PL, HO, INT, MCD. Voltage: 12V / 24V. Dimensions (L x W x H): 798 x 553 x 528 mm.
Power
106 kW
144 HP @ 3800 rpm
Max. torque
315 Nm
@ 2050 RPM
Displacement
2.1 L
4 cylinders
Weight
263 kg
Technical data
Specifications
Performance
- Rated power (kW)
- 106 kW
- Rated power (HP)
- 144 HP
- Rated speed
- 3800 rpm
- Max. torque
- 315 Nm
- Torque at
- 2050 rpm
- Power-to-weight (calculated)
- 0.40 kW/kg
Engine design
- Displacement
- 2.1 L
- Cylinders
- 4
- Bore
- 85 mm
- Stroke
- 94 mm
- Multi-fuel capable
- Yes
Dimensions & weight
- Length
- 798 mm
- Width
- 553 mm
- Height
- 528 mm
- Weight
- 263 kg
Specifications are for reference and may change. Contact our team to confirm figures for your application.
Complete your installation
Matched propulsion systems
Sterndrives, waterjets and gearboxes matched to Steyr SE engines.
Next step
Need help specifying the SE144E38?
Tell us about your vessel, application and drive type. Our team will confirm fitment, availability and lead time.
Official Steyr distributor
Ships from Kauai, Hawaii
SE4 Series
Compare models in this series
| Model | Power | Torque | Displacement | Weight |
|---|---|---|---|---|
| SE164E40 | 118 kW / 160 HP | 330 Nm | 2.1 L | 263 kg |
| SE144E38This model | 106 kW / 144 HP | 315 Nm | 2.1 L | 263 kg |
